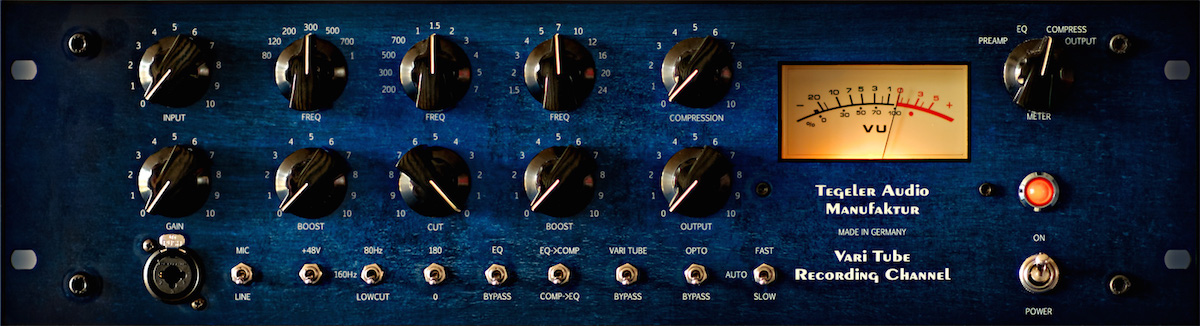

Vari Tube Recording Channel VTRC

You have experience with digital music production and with handling plug-ins but are aspiring to reach the professional league?

The digital sound-editing of voices and solo-instruments makes sense if you want to work mobile in the pre-production or want to test through certain equalizer-or compressor-types using their digital clones.

During the completion of your mix with plug-ins, you realized that recorded voices don’t become prevalent, don’t integrate into your mix and clearly sound adapted.

Maybe you made the right decision for quality and bought the a good microphone, however a premium mixing-console is ,to continue with quality, outside of your budget.

So far, you vainly looked for a solution to that problem: a combination of a premium pre-amplifier, compressor and equalizer made up of the finest components is available in only one piece of equipment for an exceptionally fair price that is reachable for Project-studios.

We at Tegeler Audio Manufactur as musicians had the very same problem and therefore shifted our focus towards the development of such a device. The VTRC. The Vary Tube Recording Channel gives your recording the most up market boutique-sound and confident powers of self-assertion, while at the same time creating a perfect integration into the mix.

The device astonishes with its sound-results that is accredited to high-end devices within the top price range when used during blind-tests.

It is the first sound-refiner worldwide who allows for the combined operation of vari-q and opto-compressor and therewith offers a sound-spectrum ranging from clean precision and silky-warm vintage-sound.

FEATURES:

General
– Tube device (3 Triodes)
– Class-A circuit
– Frequency response: 20 – 20.000 Hz +/- 1,5dB
– gerasterte Potis

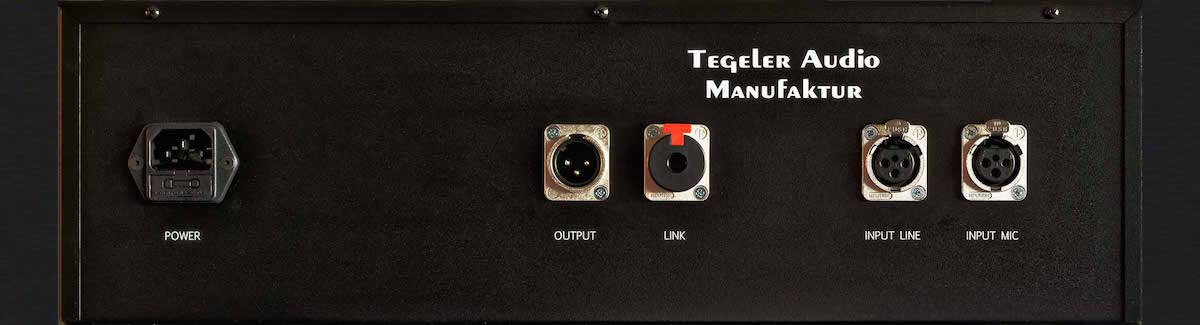

– Transformer balanced inputs and output
– Internal power supply with toroidal transformer
– Height: 132mm (3U), width: 483mm, depth: 250mm

Microphone Preamp
– Microphone preamp with transformer / 48V / Phase
– True 48V phantom power
– Phase switch
– High-impedance instrument input(100 kOhm)
– Character changeable from clean to fat

Equalizer
– Low-cut: 80-160Hz
– Low-mid boost: 80-120-200-300-500-700-1000 Hz
– Mid-cut: 200-300-500-700 Hz 1-1,5-2-3-4-5-7 kHz
– High boost: 1,5-2-3-4-5-7-10-12-16-20-24 kHz

Compressor
– Opto compressor
– Vari-Tube compressor (vari-)
– Soft-Knee
– Program-adaptive attack and release timing
