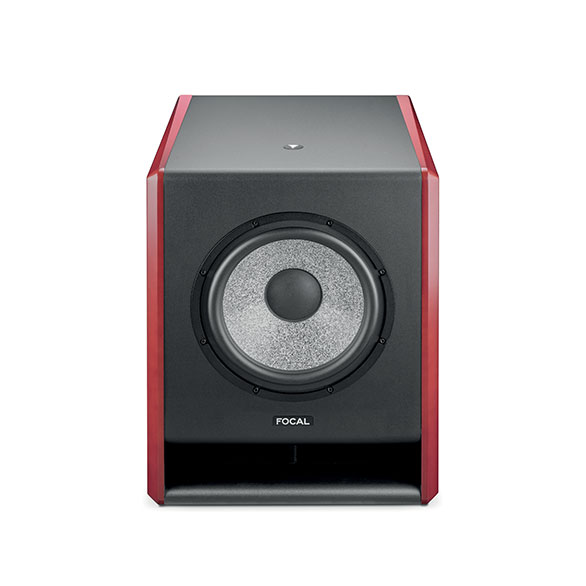

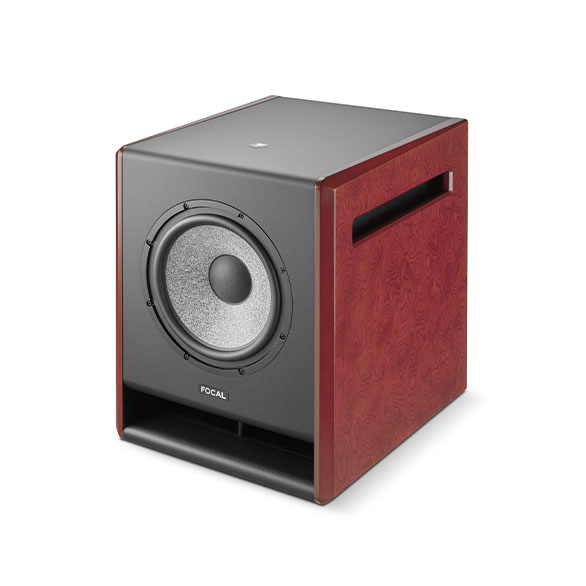

Sub12

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).

FEATURES:

• Linear bass reproduction down to 22Hz
• Maximum Peak sound pressure in 1 m ≥ 115dB
• High-efficiency 200W PWM amplifier
• Special 12″ woofer with paper diaphragm
• Easy manual or automatic (de-)activation
• Upper cutoff frequency is selectable between 50Hz and 150Hz
• Switchable highpass filter for satellite outputs, rolls off signal below 85Hz

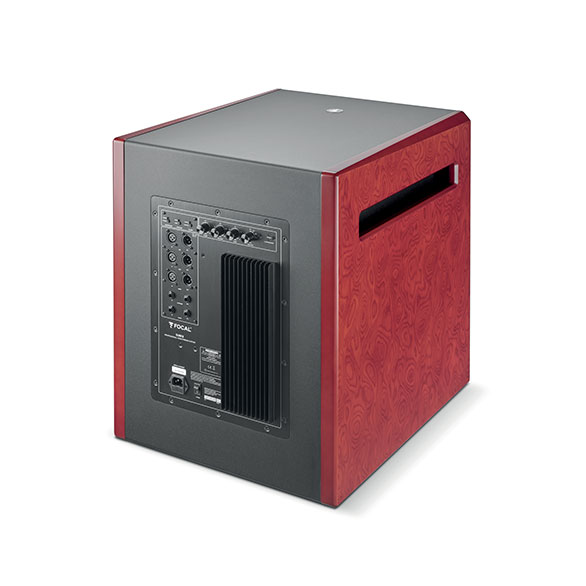

• Analog XLR and RCA inputs
