Sudeep Audio

Sub12

provides a precise combination of low cutoff frequency

SKU SUB12BrandAdam AudioCategory
User Manual
2Year Warranty
Ships in 1-2 daysShips in 1-2 days

221,250 (incl. GST)

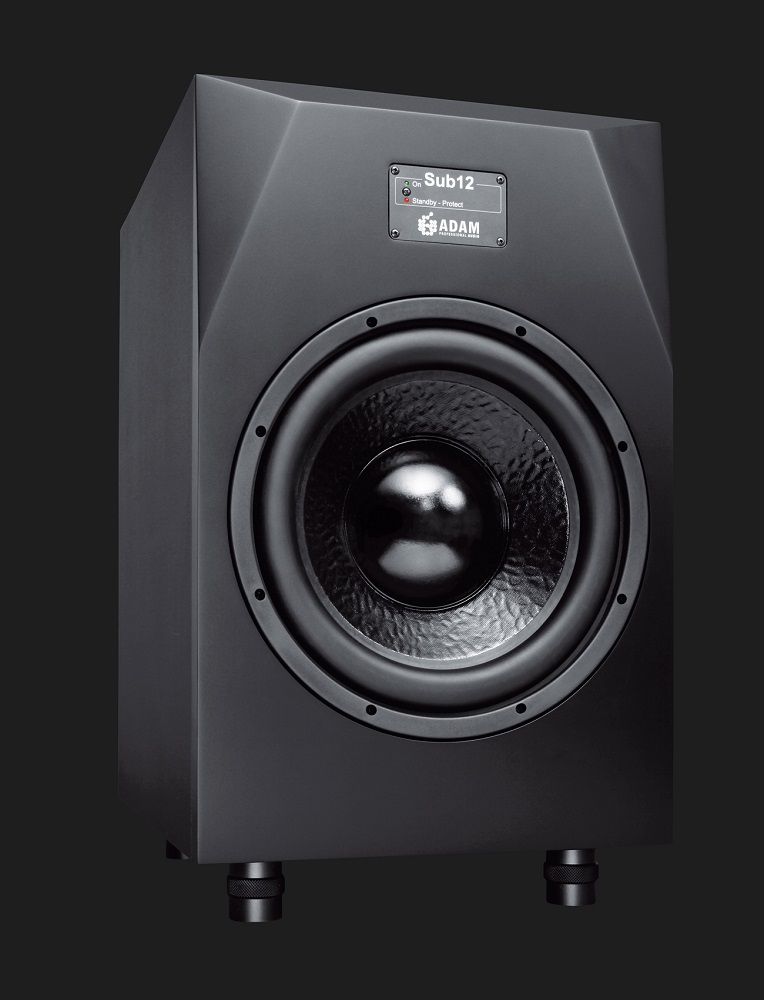

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).

FEATURES:

  • Linear bass reproduction down to 22Hz
  • Maximum Peak sound pressure in 1 m ≥ 115dB
  • High-efficiency 200W PWM amplifier
  • Special 12″ woofer with paper diaphragm
  • Easy manual or automatic (de-)activation
  • Upper cutoff frequency is selectable between 50Hz and 150Hz
  • Switchable highpass filter for satellite outputs, rolls off signal below 85Hz
  • Analog XLR and RCA inputs
Driver Size12"
Driver Power Amp300W
Frequency Range50Hz-150Hz
Crossover Frequency22Hz
Maximum Peak SPL118 dB SPL @ 1m

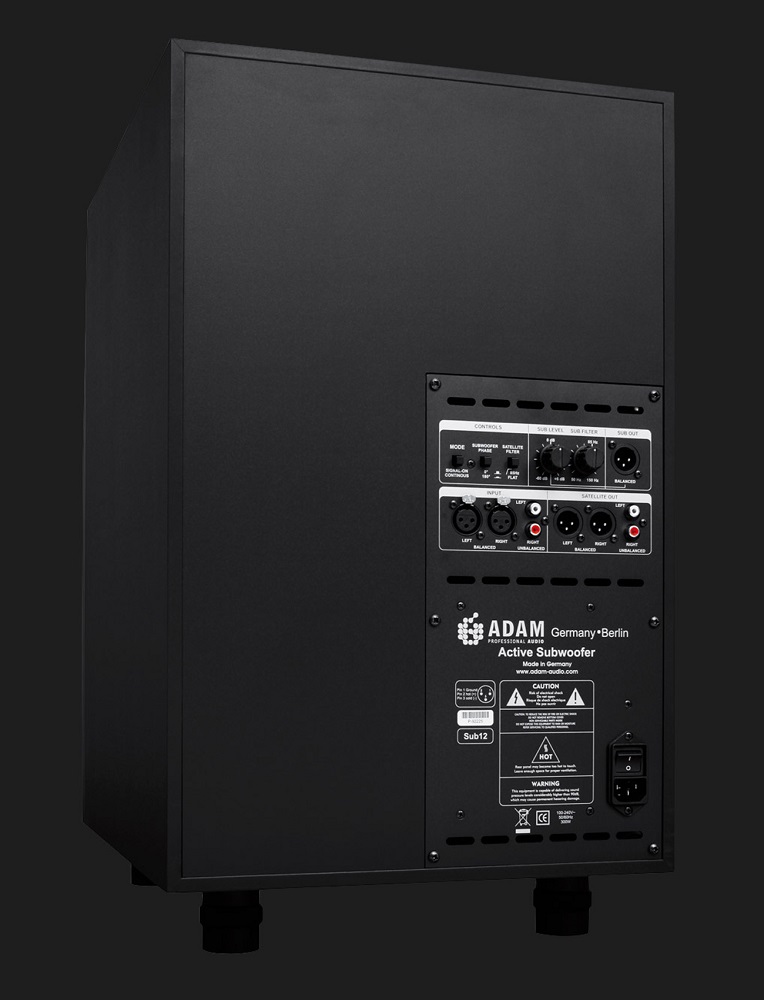

Input Types2 x XLR, 2 x RCA
Output Types3 x XLR, 2 x RCA
H x W x D23.6" x 14.2" x 17.7"
Weight26 kg
  • 1 x unit
  • 1 x powercord
