Name: P8 with ADC
Brand: SPL
SKU: spl-p8+adc
Availability: InStock

P8 with ADC

8-channel Microphone Preamplifier with Discrete Transistor Circuit Design and A/D Converter with ADAT Output

SKU spl-p8+adcBrandSPLCategory Pre Amps

Product Video

User Manual

1Year Warranty

Ships in 1-2 days

₹263,500 (incl. GST)

P8 is equipped with eight identically designed microphone preamplifers. All eight preamps have a discrete design – without ICs, made of individual transistors. This is typical for absolute high-end preamplifers and is one of the main reasons for the outstanding sound.

Besides an analog gain control for adjusting the preamplifcation, each of the eight preamps features an individually switchable phantom power supply (48 V), a PAD switch, a phase inversion function and a switchable analog high-pass flter.

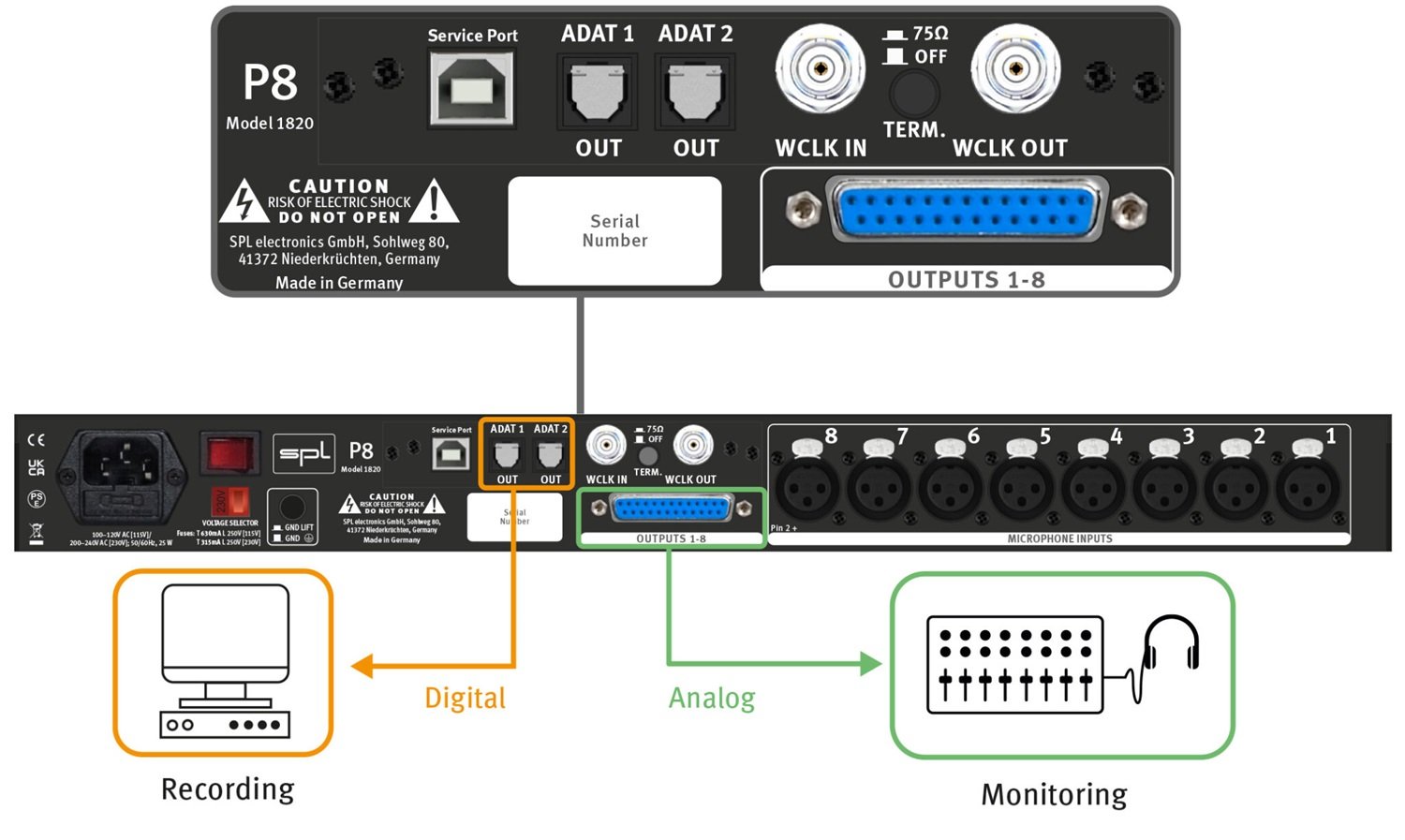

With the optional eight-channel ADAT converter, the purely analog P8 can be digitally connected to audio interfaces.

P8 paves the way for high-quality multi-channel recording sessions.

The AD converter
The converter chip in the optional digital-to-analog converter is the highly acclaimed AKM AK5538 ADC chip, which thanks to its architecture reproduces the fnest sound details.

The AD converter converts analog audio signals with sampling rates of up to 192 kHz and therefore recommends itself as the frst choice for transferring the maximum sonic quality of the microphone preamps of the P8 to the digital world.

Features:

8-channel mic preamplifier and A/D converter with ADAT
Discrete transistor circuit design
Per-channel balanced XLR inputs
Per-channel 20dB pad, polarity reverse, 48V phantom power, and 80Hz, 6dB/octave HPF
8-channel analog output via DB-25 port
Installed 8-channel A/D converter with ADAT outputs
Meticulously crafted in Germany
