P8

P8 is equipped with eight identically designed microphone preamplifers. All eight preamps have a discrete design – without ICs, made of individual transistors. This is typical for absolute high-end preamplifers and is one of the main reasons for the outstanding sound.

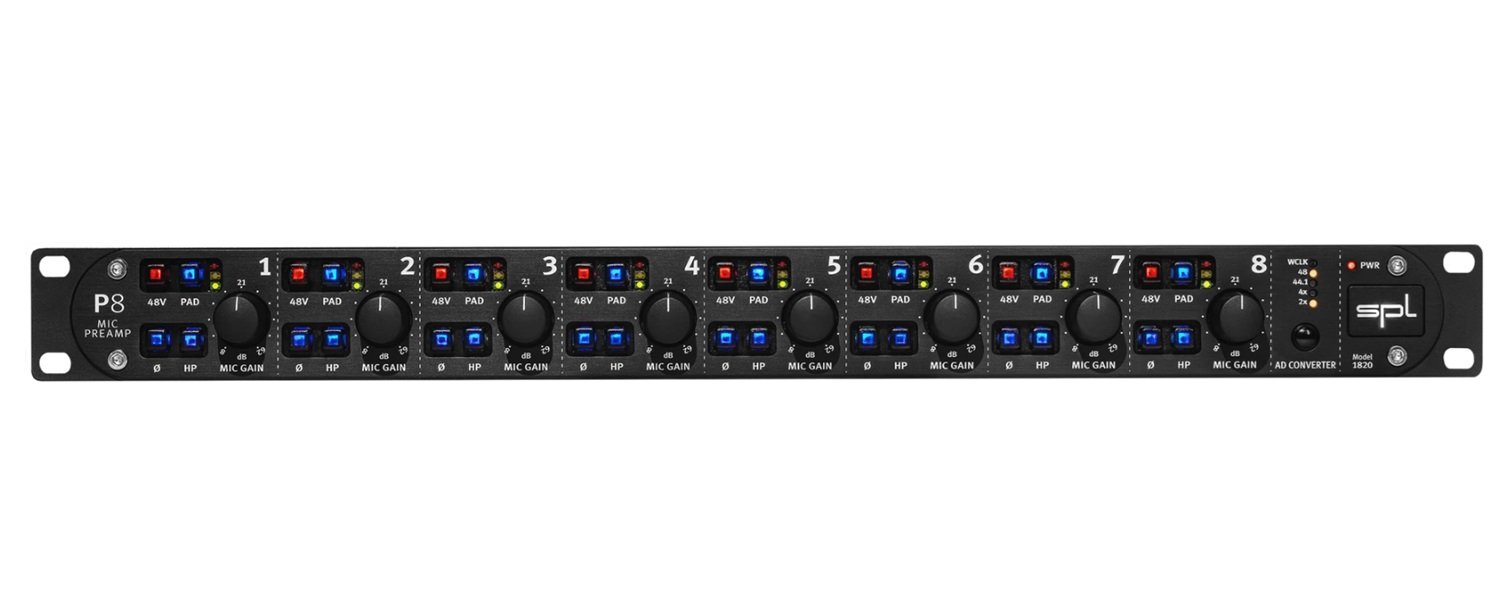

Besides an analog gain control for adjusting the preamplifcation, each of the eight preamps features an individually switchable phantom power supply (48 V), a PAD switch, a phase inversion function and a switchable analog high-pass flter.

With the optional eight-channel ADAT converter, the purely analog P8 can be digitally connected to audio interfaces.

P8 paves the way for high-quality multi-channel recording sessions.

Features:

• 8-channel microphone preamplifier
• Discrete transistor circuit design

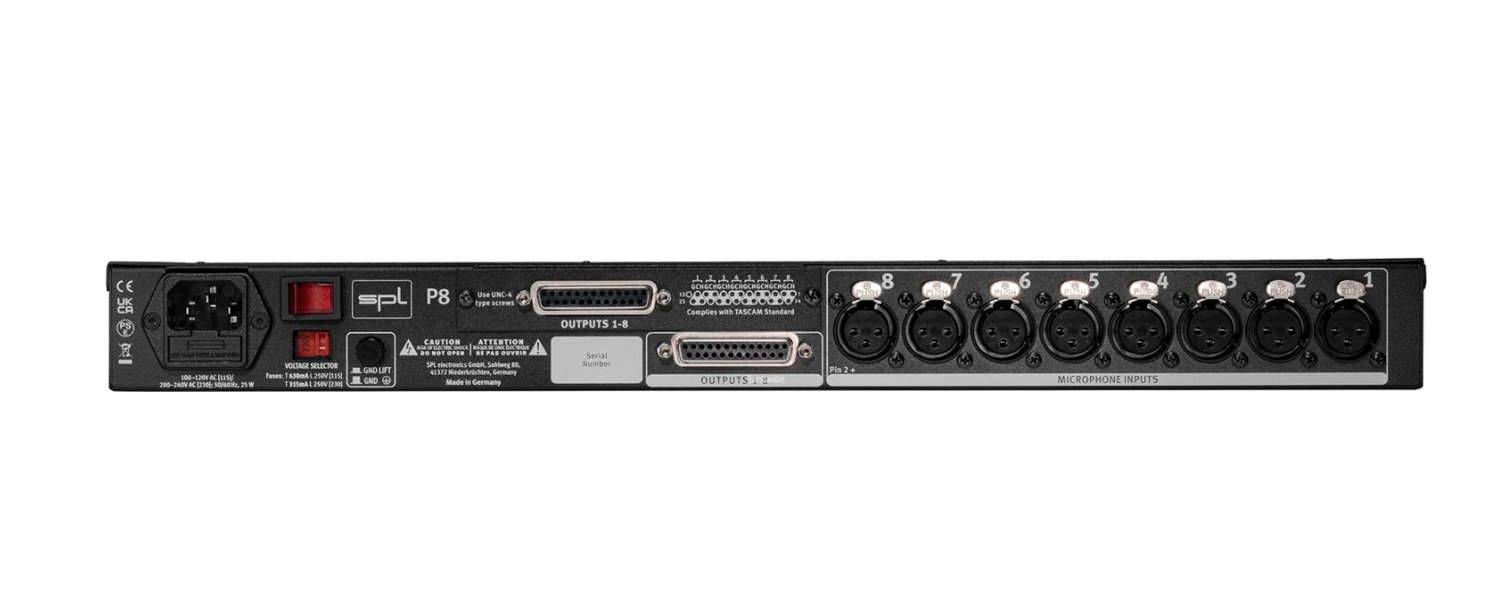

• Per-channel balanced XLR inputs
• Per-channel 20dB pad, polarity reverse, 48V phantom power, and 80Hz, 6dB/octave HPF

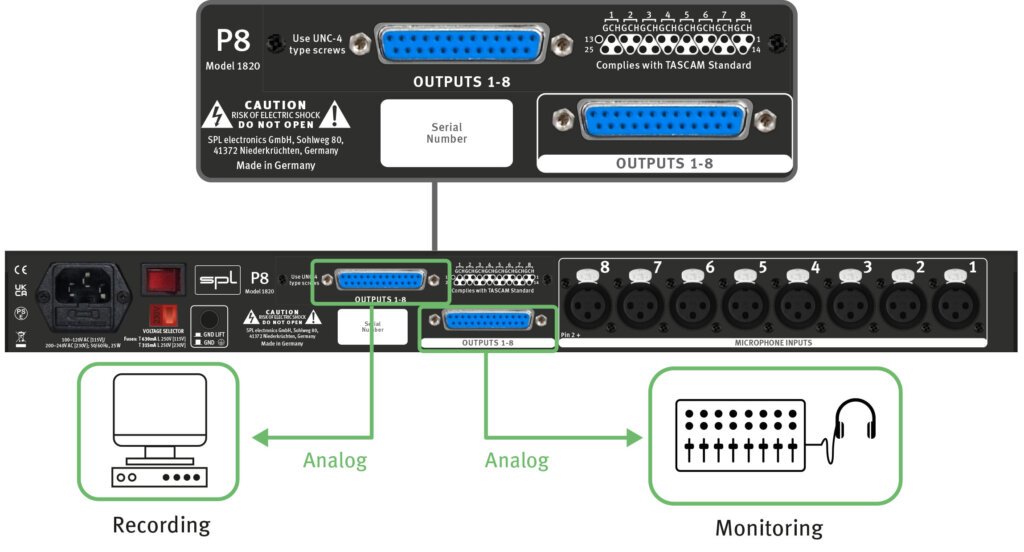

• 8-channel output via redundant DB-25 ports
• Optional 8-channel A/D converter with ADAT outputs (replaces 1 DB-25 port)
• Meticulously crafted in Germany
