Oria

Meet ORIA, the world’s first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.

A perfect fit

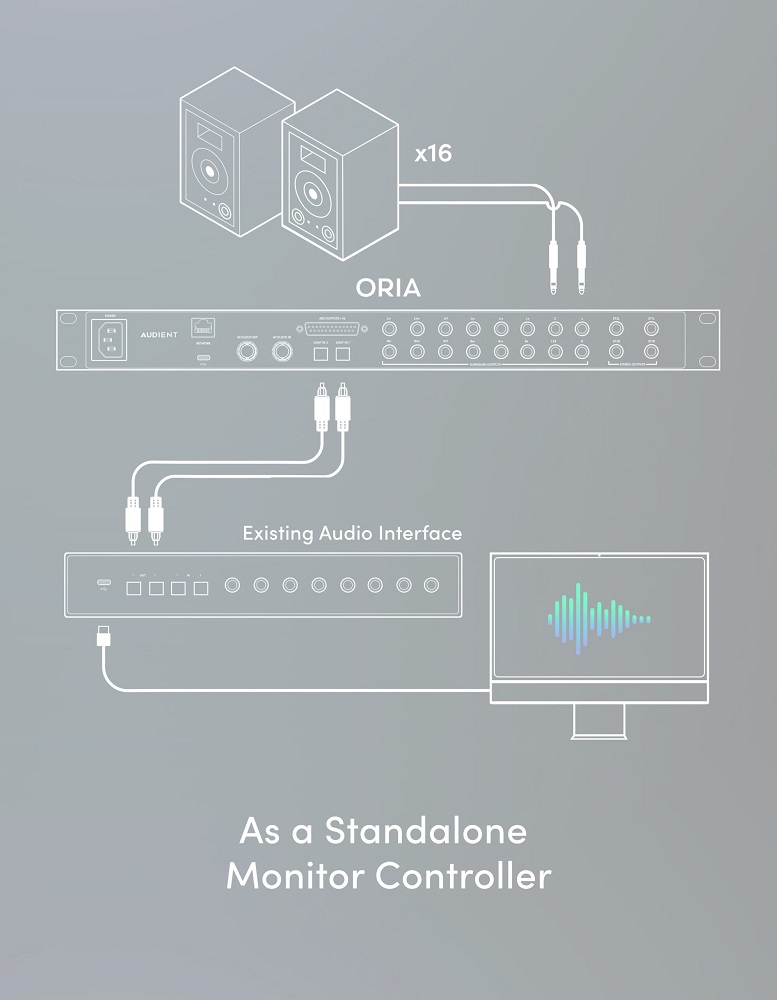

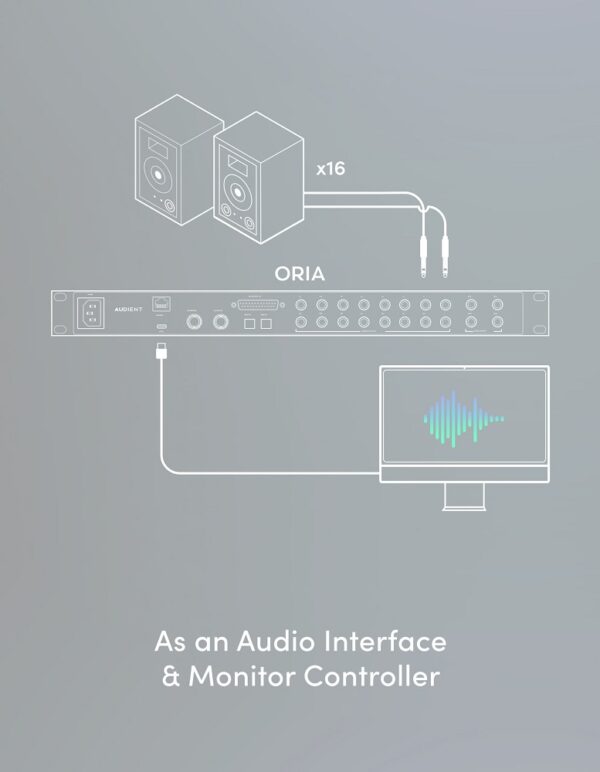

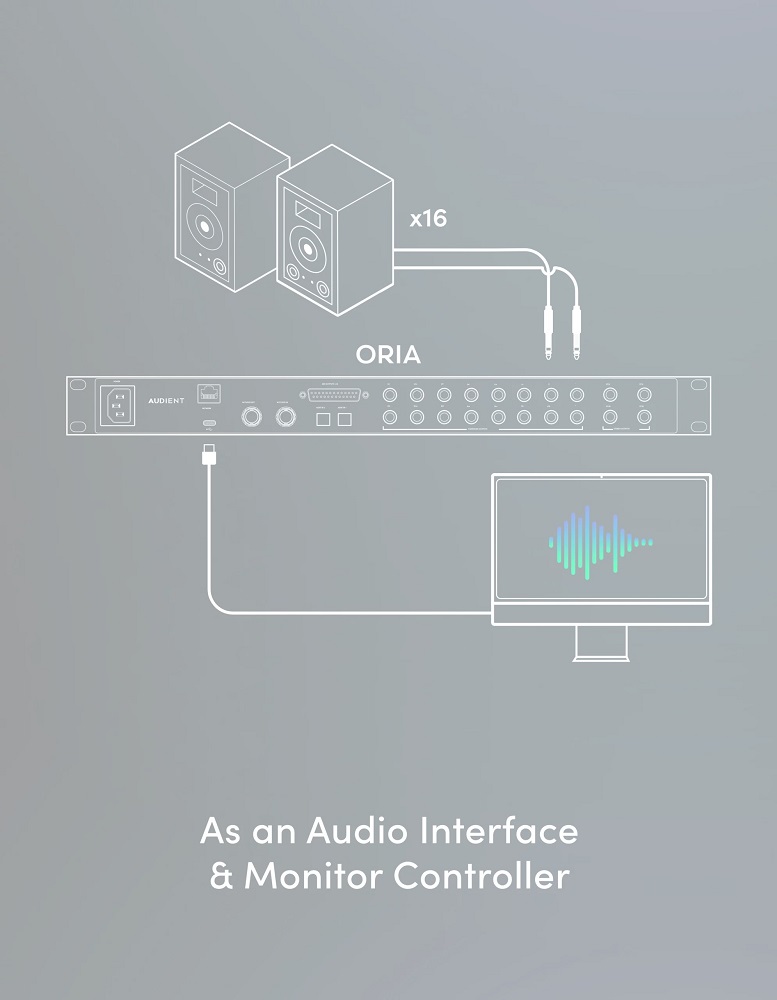

Designed with a dual purpose, ORIA not only excels as a powerful USB-C audio interface providing 16 outputs for up to 9.1.6 mixing workflows, but can also effortlessly integrate into your existing studio setup as a standalone monitor controller via its ADAT Inputs. Flexibility where you need it.

Advanced Speaker Processing
Working with multi-channel speaker setups requires a precisely calibrated room but let’s face it, calibrating your room is a difficult and time consuming process.

All present & correct
ORIA’s Advanced Speaker Processing lets you calibrate your room and create custom onboard calibration Profiles (presets) for any monitoring format from stereo to surround to 9.1.6 immersive setups, making reference checking your mix in different formats a breeze.

Add to that the ability to calibrate your room in one of two ways. Either create a Profile by manually taking room measurements and dialling in the calibration settings or take advantage of upgrading to SoundID Reference…

Features:

• Dolby-approved, effective entryway into the world of immersive audio
• Fast, reliable USB-C connectivity

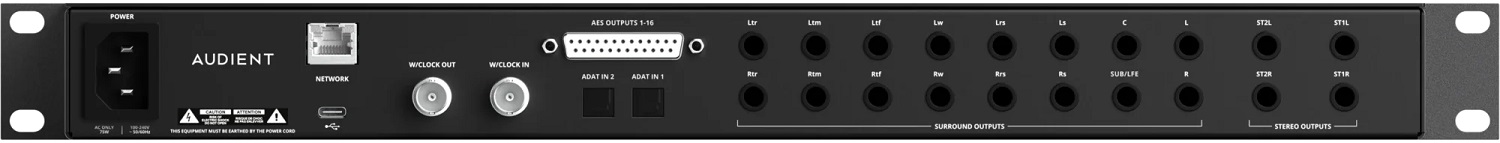

• Houses a full complement of digital and analog I/O, supporting up to 9.1.6 speaker configurations
• High-quality 24-bit/96kHz conversion supplies 126dB of dynamic range
• 2 excellent-sounding mic/line/hi-Z inputs with 60dB of gain
• 2 independent stereo headphone outputs
• 16 ADAT input channels pair perfectly with an external 9.1.6 monitor controller or a multichannel mic preamp
• Onboard manual room calibration DSP provides access to EQ, speaker delay, trim, and bass management
• Tight integration with Sonarworks SoundID Reference (60-day free software trial and reference mic included)
• Integrate into AoIP workflows with an optional Dante card (sold separately)
• Color-coded speaker groups, individual and group speaker muting and soloing, global volume, cut and dim, and global delay

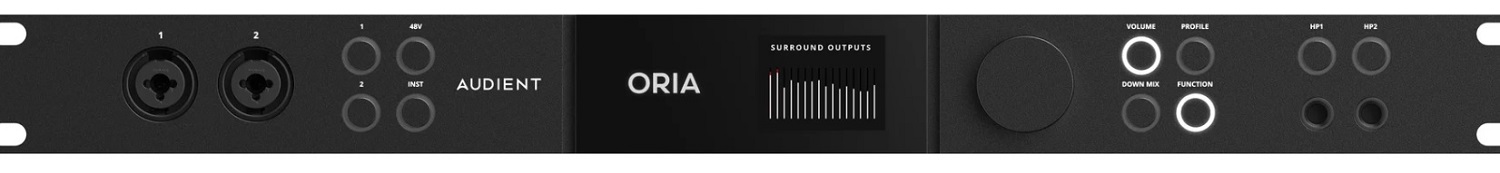

• Front-panel LCD makes keeping an eye on metering easy
• Remote control support via iPad
