Monitor Station v2

• Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer – all from your desktop.
• Switch quickly and easily between up to four audio sources with a selection of input types.
• Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control and four screaming-loud headphone outs.
• With Monitor Station V2, you can evict the drummer from the main room, banish the guitarist to the bathroom, shove the singer into a closet, and make them like it.

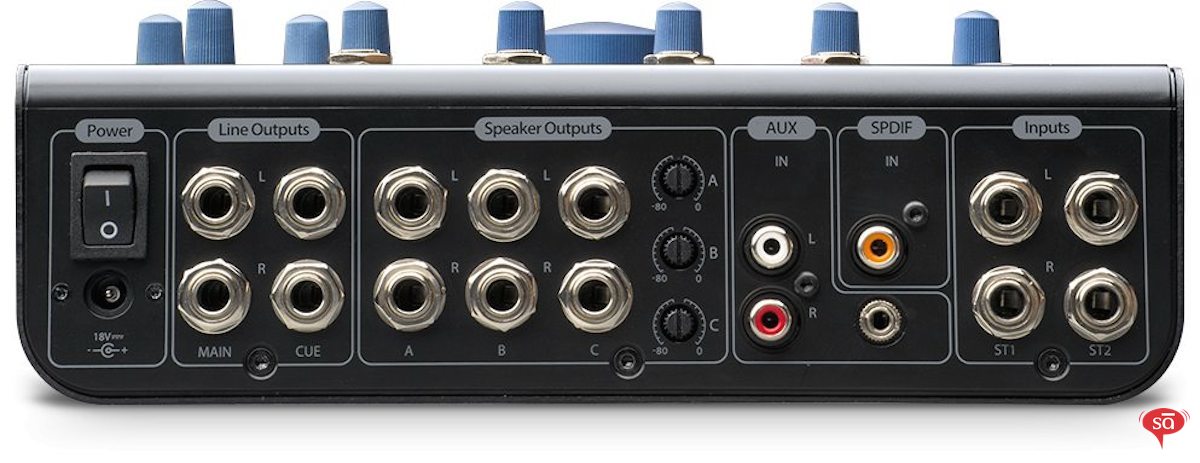

Inputs and Outputs

• 2 Stereo pairs of 1/4″ TRS inputs
• 1 Stereo pair of RCA Aux inputs
• 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
• 3 Stereo pairs of 1/4″ TRS speaker outputs with level controls
• 1 Stereo pair of 1/4″ TRS Main outputs
• 1 Stereo pair of 1/4″ TRS Cue outputs
• 4 1/4″ TRS screaming-loud stereo headphone outputs

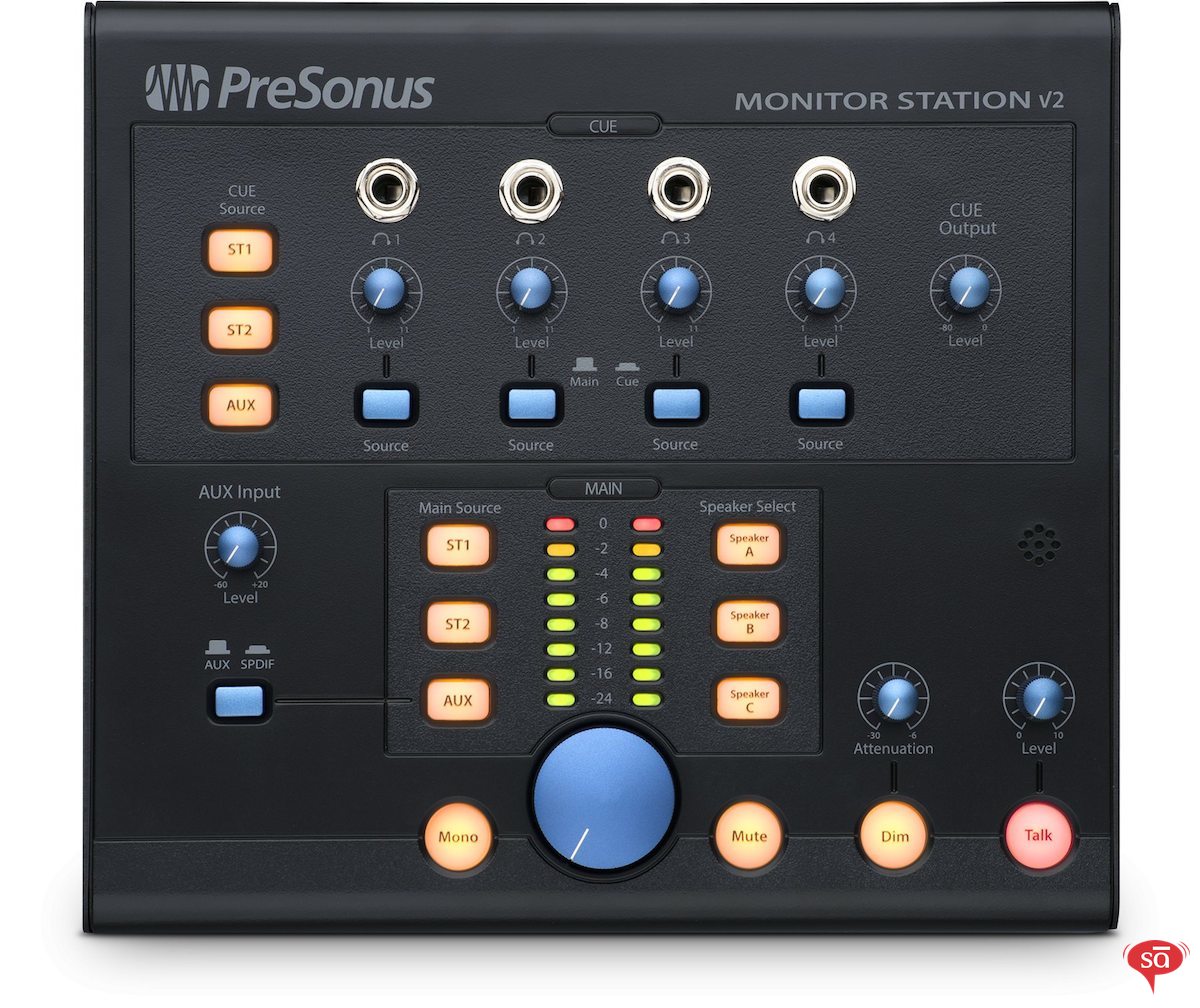

​Controls

• Large Main level control
• 3 Individual Main Source (ST1, ST2, Aux) select switches
• 3 Individual Speaker Select switches
• Cue section with Source select (ST1, ST2, Aux) and output-level control
• Aux-S/PDIF Select switch
• Aux Input level control
• Main Mute, Mono, and Dim switches with variable Dim attenuation

Additional Features

• 8-segment color LED input meters with selectable reference level
• Built-in electret-condenser talkback microphone with input-gain control and Talkback button
• Convenient desktop design
