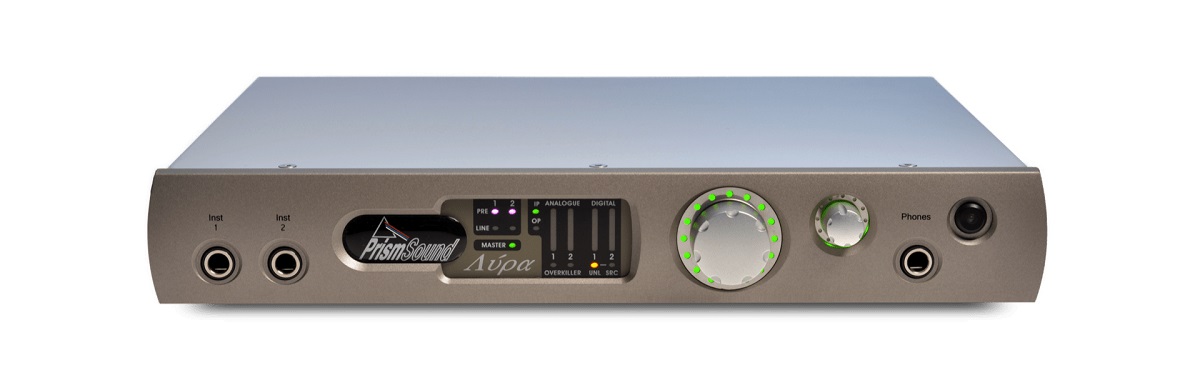

Ships in 1-2 daysLyra represents the pinnacle of compact audio interfaces. Packing Prism Sounds trusted, uncompromising AD/DA conversion into a compact chassis perfect for use in the studio or on the road.
Based on the Orpheus’ audio path and clock circuitry, Lyra is ideal for those who don’t require a large I/O count, but do demand the highest quality and most transparent AD/DA available.
The Prism Sound Lyra 2 is a USB audio interface designed to deliver reliable precision and high-resolution audio I/O for musicians, vocalists, songwriters, and audio engineers in home, project, and mobile studios. Its stable clock allows operation at up to 24-bit / 192 kHz resolution with high jitter rejection. With latency as low as 0.08 ms, it is well suited for recording, overdubbing, and even send-and-return routing.

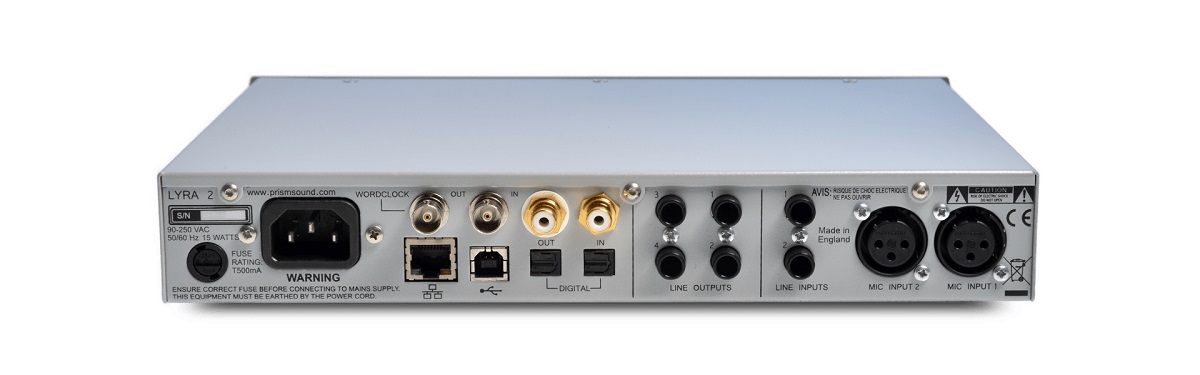

Line, instrument, or microphone sources can be connected via the stereo 1/4″ TRS inputs, two 1/4″ instrument inputs, and two XLR 3-pin inputs. Phantom power is selectable as are the input pads and built-in limiters. The four 1/4″ line outputs are ideal for connecting to speakers and power amps, while the front-panel 1/4″ jack offers dedicated level and mix controls for independent headphone monitoring. Additionally, digital connectivity includes RCA coaxial for S/PDIF or AES3, TOSLINK optical for S/PDIF or ADAT, and BNC for word clock. An RJ45 port is present for future AVB integration.
The Lyra 2 is compatible with Mac OS X and Windows systems via its class-compliant USB 2.0 connectivity. An IEC power cable, USB cable, and XLR to RCA adapters are included.
OVERVIEW:
- Class-Compliant USB 2.0 Interface
- Up to 24-Bit / 192 kHz Resolution
- 2 x XLR Inputs with Phantom Power
- 2 x 1/4″ Instrument Inputs
Key Features:
- 2 A/D Analogue Input Channels
- 4 D/A Analogue Line Output Channels
- S/PDIF / ADAT Digital In/Out
- AES3 Mode on RCA/Phono
- Word-clock Sync I/O
