Eris Studio 5 (single)

5.25-inch 2-Way Active Studio Monitors with EBM Waveguide

SKU estud5BrandPresonusCategory
Product Video
User Manual
Ships in 1-2 daysShips in 1-2 days

20,990 (incl. GST)

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class. Designed for superior performance in both home studio and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you’ll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris’ signature tight, clear bass with plenty of punch. Its 80W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz – without a subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You’ll have no problem hooking your Eris speakers up to virtually anything.

Features
  • 5.25-inch woven composite low-frequency driver
  • 1-inch, ultra-low mass, silk-dome, high frequency driver
  • Crossover Frequency, 3.5 kHz
  • 120˚ x 60˚ EBM waveguide provides a sweet spot
  • Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
  • 80W, Class AB dual amplification
  • 48 Hz to 20 kHz frequency response
  • 102 dB Peak SPL (@ 1 meter)
  • Acoustic Tuning Controls:
    • Acoustic Space (Flat, -2 dB, -4 dB)
    • High Frequency (±6 dB, center 10 kHz, continuously variable)
    • Mid Frequency (±6 dB, center 1 kHz, continuously variable)
    • Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

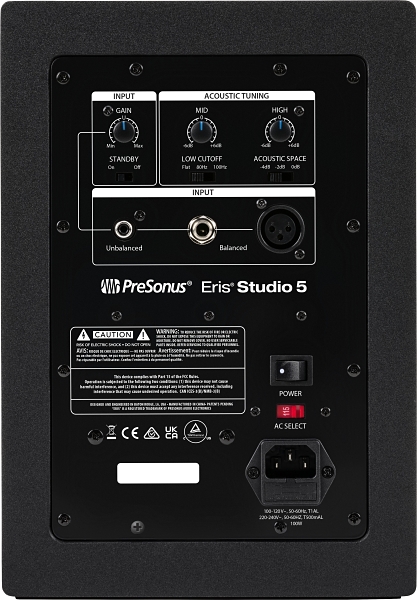

  • Inputs:
    • XLR and 1/4-inch TRS balanced rear-panel inputs
    • RCA unbalanced rear-panel inputs
  • Protection:
    • RF interference
    • Output-current limiting
    • Over-temperature
    • Turn-on/off transient
    • Subsonic filter
  • Power Saver mode (engages after 40 minutes)
LF Driver Size5.25"
LF Driver MaterialWoven Composite
HF Driver Size1"
HF Driver TypeDome
HF Driver MaterialSilk
LF Driver Power Amp45W
HF Driver Power Amp35W
Frequency Range48Hz-20kHz
Input Types1 x XLR, 1 x 1/4" TRS, 1 x RCA
H x W x D11.5" x 8" x 8.8"
Weight5.2kg
Also includes...Acoustic Tuning Controls
  • 1 x Studio Monitor
  • 4 x Foam feet to be placed on the bottom of the speaker to improve isolation
  • 1 x Eris Studio-Series Quick Start Guide
  • 1 x IEC Power Cable
Eris Studio 5 (single)Eris Studio 5 (single)
20,990 (incl. GST)
