AudioFuse 16Rig

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

Make your sound count

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be molded to suit your audio setup, your workflow, and your sound.

A standalone mixer

For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing

Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick ‘connect anything and everything’ configuration.

Quantity, meet quality

Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow

Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It’s time your music had an upgrade

• x16 ADAT I/O
• x8 Analog Line DC coupled Outputs
• x16 Analog Line Inputs
• x1 MIDI In & 2x MIDI Out/Thru
• Wordclock I/O
• 24-bit AD/DA 192kHz
• Creative FX Bundle Included

Premium FX included

Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from our award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

Features:

• Comprehensive interface features an all-analog design with ESS and Cirrus Logic 24-bit AD/DA converters for consistent signal preservation and unwavering clarity

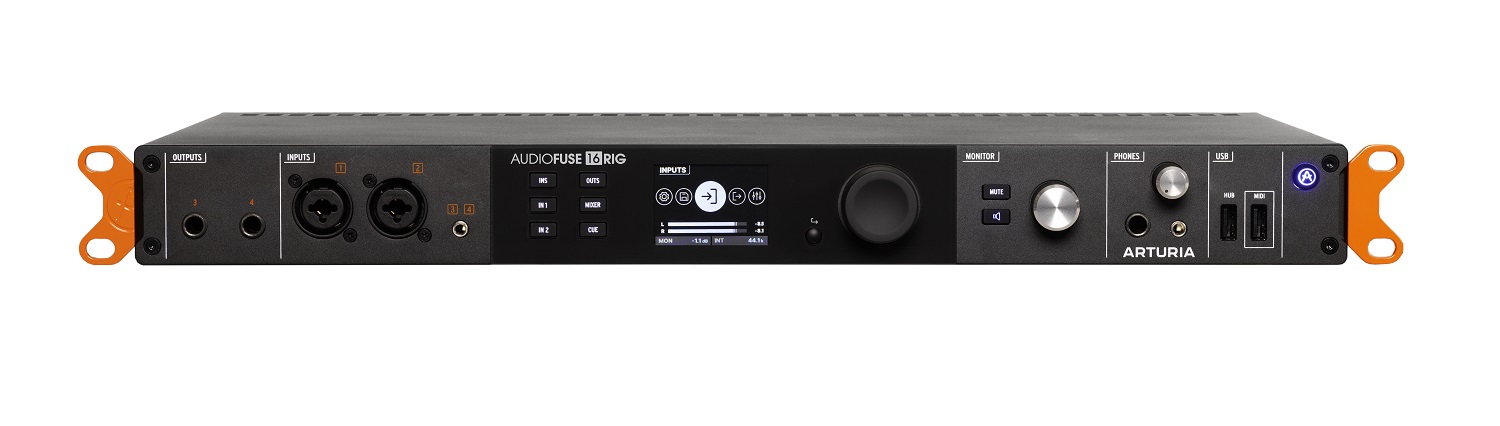

• 16-in/12-out design includes periodic, front-mounted I/O to keep essentials recording-ready without sacrificing connectivity for special instances of use
• Front-mounted combo jacks accommodate line-level, instrument, and XLR inputs that mirror channels 1 and 2
• Input for channels 3 and 4 can be accessed via 1/8-inch auxiliary stereo input at the front and managed from the panel for further stereo refinement

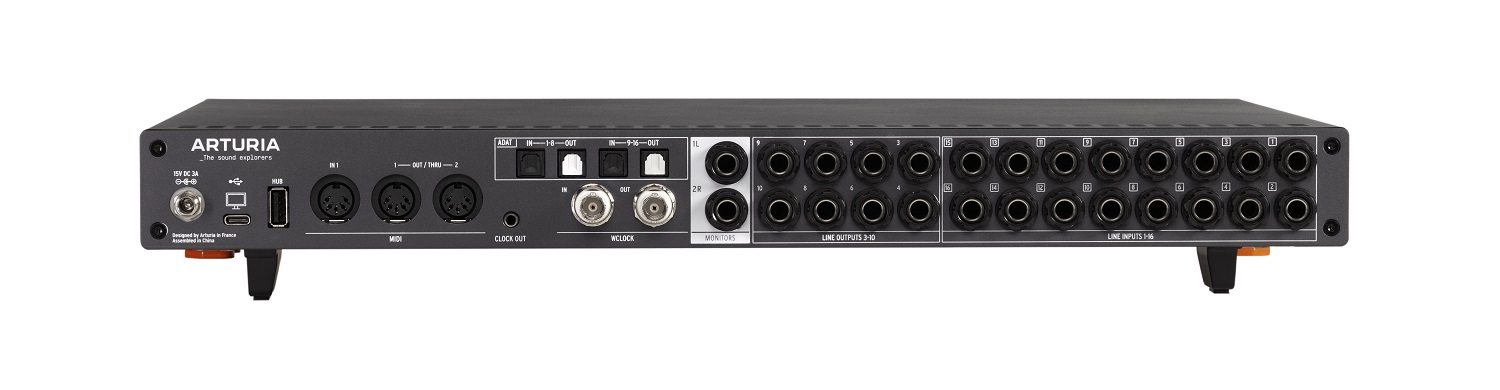

• 12 multimode analog outputs include 8 DC-coupled TRS outputs to control synth modules, expression devices, and more
• Outputs for channels 3 and 4 can be used for Re-amp, Altphones, and Directthru functions for immensely augmented recording and playback flexibility
• Standalone design allows you to manage audio sources, as well as Class Compliant MIDI devices through USB or 5-pin DIN for uncompromising control without the need for a computer
• 2 ADAT I/O pairs accommodate up to 16 total channels at 96kHz recording quality, with room for archive-grade 192kHz quality without using every channel
• Word Clock ensures virtually any master/slave sync configuration will keep things locked in step
• Monitor section’s speaker-icon button offers 3 assignable functions: dimming that won’t overwrite your established reference level; mono checking; and A/B stereo switching
• Included Arturia AudioFuse Control Center software provides deep control of Main and Cue Mixers, MIDI management, Routing Matrix, and preset design
• Entire interface can be controlled via MIDI, including mixer levels and routing management with a Class Compliant controller
• Routing Matrix is used for controlling any analog and digital destination across Monitor, Phones, ADAT, Main Mix, Cue Mix, and Auxiliary sends
• Included USB-A to USB-C cable, USB-C to USB-C cable, PSU, registration card, and removable rack ears guarantee compatibility with nearly any rack or desktop arrangement
