Ships in 1-2 daysConnect all your studio gear, including microphones, guitars, synths, keyboards, drum machines, outboard processors and optical expanders. All I/O is available simultaneously.
Connect to your Mac or PC with Thunderbolt™ or Hi-speed USB 2.0, with up to 256 audio channels (128 in and 128 out) over Thunderbolt. Or stream dozens of audio channels to and from your Mac over AVB/TSN Ethernet using a standard, affordable CAT-5e cable up to 100 meters long. Class-compliant firmware and industry standard drivers work with any audio apps. Connect to your iPad™ with a standard camera connection kit (adapter).
A full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you’ll feel right at home. If you’ve ever wished to mix on a large console, the driver’s seat is now yours.
FEATURES:
- 24-in/28-out hybrid audio interface for studio and live sound
- ESS Sabre32 DAC technology delivers 123dB of dynamic range and superb audio quality
- Optimized drivers yield round-trip latency as low as 1.6ms at 96kHz via Thunderbolt and 1.9ms via USB

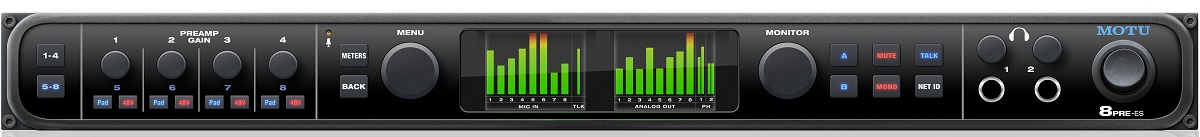

- Dual LCD screens allow you to see all signal activity at a glance with detailed metering
- Access your hardware settings from a simple and convenient front-panel menu
- 8 great-sounding microphone preamps with dedicated sends, switchable pads, and phantom power
- 16 channels of ADAT optical digital I/O expand your system with additional gear
- Built-in talkback mic with front-panel Talk button and A/B speaker select buttons
- Onboard 32-bit floating point DSP-driven digital mixer with EQ, dynamics, and effects provides latency-free routing
- Hook up a wireless router and take complete control of the onboard mixer from your laptop, tablet, or smartphone
- MOTU’s AVB audio networking expands your system with additional AVB-equipped audio interfaces
- Create an AVB network via optional AVB Switches with support for up to 5 compatible interfaces
